GROUP 24 SMART RV LITHIUM BATTERY
100Ah Lithium House Power for Compact RV Battery Bays
TUORDE T-RV100-G24 pairs a 12.8V 100Ah LiFePO4 configuration with approved dimensions of 260 × 168 × 210 mm for compact RV house-battery installations. Its 1.28kWh nominal energy and P100 CORE BMS provide a starting point for travel trailer, camper van and motorhome auxiliary-power projects. Verify physical fit, load demand and lithium charging compatibility together.
Request the current T-RV100-G24 datasheet and mechanical drawing for the selected configuration before ordering or installation.
Approve the mechanical drawing, final electrical ratings and application compatibility before ordering or installation.
T-RV100-G24: Capacity, Configuration and Fit Data
T-RV100-G24 model configuration.| Parameter | Specification / status |
|---|
| Brand | TUORDE |
|---|
| Product Model | T-RV100-G24 |
|---|
| Configuration Code | T-RV100-G24-CORE-STD-P100 |
|---|
| Product Type | Deep Cycle LiFePO4 RV House Battery |
|---|
| Nominal Voltage | 12.8V |
|---|
| Rated Capacity | 100Ah — approved rated capacity |
|---|
| Nominal Energy | 1,280Wh / 1.28kWh — nominal calculation |
|---|
| Battery Chemistry | LiFePO4 |
|---|
| Battery Enclosure | Group 24 / G24 — approved model enclosure |
|---|
| Cell Format | Prismatic |
|---|
| BMS Platform | P100 CORE — approved model platform |
|---|
| Self-Heating | No |
|---|
| Target Market | North America |
|---|
| Applications | Travel Trailer / Camper Van / Motorhome House Battery |
|---|
| Cell Supplier | Recorded in the controlled model BOM |
|---|
| Battery Weight | Refer to the approved model datasheet |
|---|
Approved Dimensions and Electrical Ratings
Use the current model revision for detailed operating limits.| Parameter | Specification / status |
|---|
| Dimensions (Length × Width × Height) | 260 × 168 × 210 mm — approved model dimensions |
|---|
| Continuous Discharge Current | 100A — approved model rating |
|---|
| Peak Discharge Current | 200A — approved model rating; confirm duration in controlled datasheet |
|---|
| Peak Duration | Refer to approved pack specification |
|---|
| Terminal Configuration | M8 / M10 / SAE / Dual — configurable, subject to verification |
|---|
| Series / Parallel Arrangement | Only arrangements explicitly approved for the selected BMS and model; do not assume 4S / 4P |
|---|
| Certification Plan | UN38.3 / FCC; UL optional, depending on applicable product and project requirements. Certification attainment is not confirmed. |
|---|
Check the selected model revision, installation drawing and application compatibility before procurement or installation.
Check Your Group 24 Tray, Terminals and Clearance
Use the 260 × 168 × 210 mm approved enclosure to begin your fit review; confirm the complete housing and terminal arrangement in the approved drawing.
A Group 24 label alone does not confirm tray retention, polarity, cable reach or service clearance.
Battery Compartment Dimensions
Verify the available length, width and height against the approved mechanical drawing.
Terminal Position
Confirm polarity, terminal access, cable reach and connector requirements.
Installation Clearance
Allow space for mounting hardware, terminal covers, cable bends and service access according to the final installation instructions.
Review Group 24 Lithium Battery installation guidance and compare RV lithium battery sizes. For other installation envelopes, see Group 27 Lithium Battery and Group 31 Lithium Battery.
Match the P100 BMS to Your 12V House Loads
Review simultaneous DC loads and inverter surge against the approved P100 CORE ratings: 100A continuous and 200A peak discharge. Confirm peak duration and operating conditions in the controlled datasheet.
Voltage Protection
Battery and cell voltage monitoring with configured protection limits.
Current Protection
Match sustained and surge demand to approved limits, cable sizes and fusing.
Temperature Protection
Apply temperature-based charge/discharge restrictions within approved operating limits.
Battery Monitoring
Access operating data supported by the selected hardware and firmware.
Do not select an inverter from the 100Ah capacity alone. Check battery current limits, inverter efficiency and start-up demand against the final datasheet.
This CORE configuration has no self-heating. Confirm low-temperature charge protection, charger voltage and maximum charge current before upgrading. Review the RV Lithium Battery Compatibility Guide when planning system integration.
Choose App Access and Battery Intelligence for Your RV Line
TUORDE’s smart battery options help customers understand remaining energy and investigate unusual power use. Specify Bluetooth app access and CAN / RS485 system integration separately from the battery-intelligence functions below.
Availability on T-RV100-G24 depends on the selected BMS hardware, firmware and software. These options are not assumed standard in the CORE-STD-P100 build.
Runtime Prediction
Estimate remaining runtime from battery energy and measured consumption.
Abnormal Drain Detection
Flag unusual consumption patterns where supported by the selected system.
Battery Health Monitoring
Review battery condition indicators, temperature trends and operating history.
Guided Battery Diagnostics
Use operating data to investigate abnormal battery conditions.
Learn about Smart BMS & AI RV Battery Technology. Diagnostics support investigation and do not perform automatic battery repair.
Where a 100Ah Group 24 House Battery Fits the Project
Travel Trailers
Evaluate campsite lighting, ventilation, pumps and other house loads within the available energy budget.

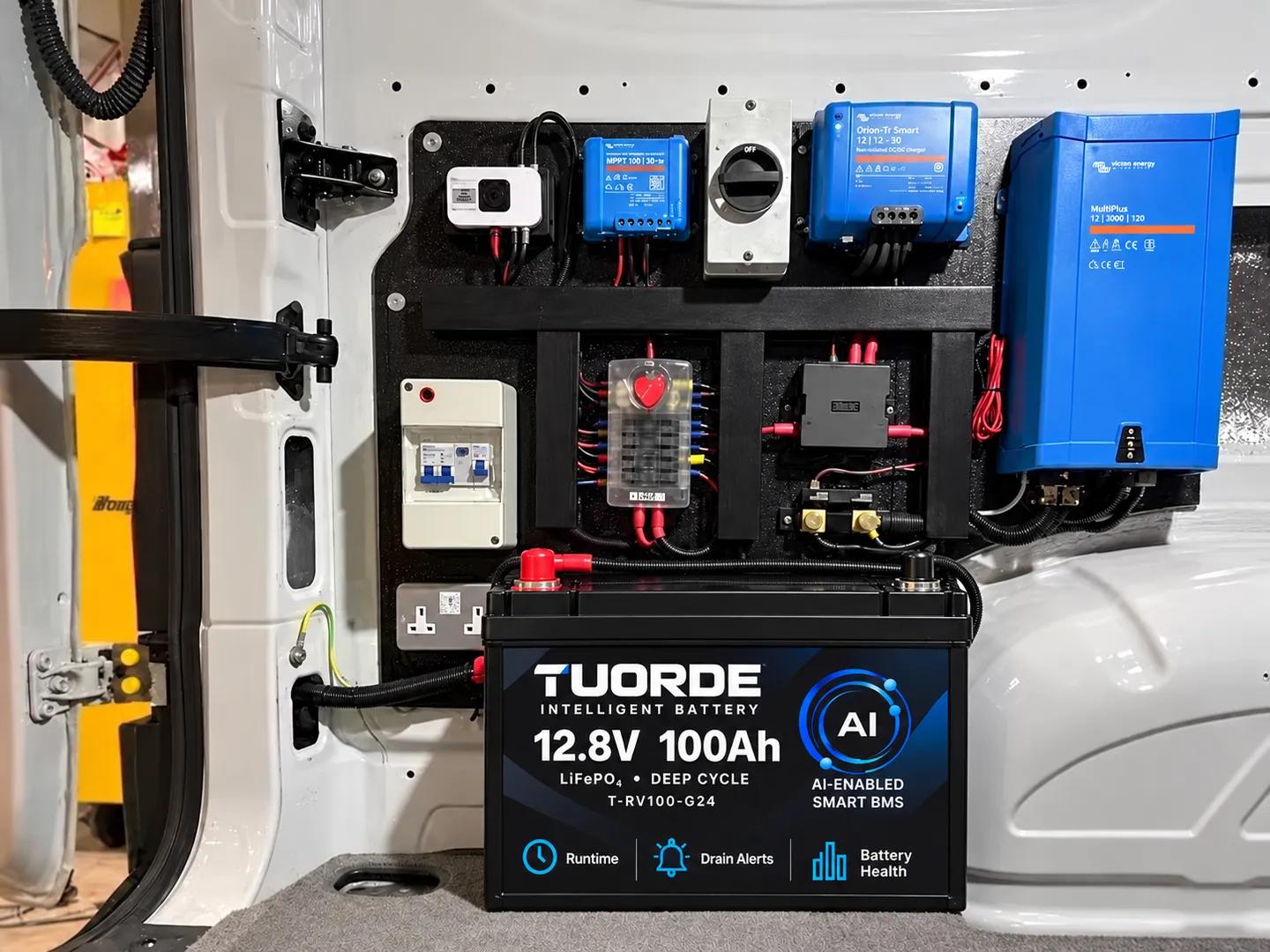

Camper Vans
Check a compact battery bay and selected 12V loads together with solar and DC/DC charging requirements.
Motorhomes
Review an auxiliary house-battery circuit against its energy demand and BMS current limits.
RV Lead-Acid Replacement
Verify tray fit, terminals, lithium charging and electrical protection before replacement.
This platform is intended for house power, not engine starting. See RV Lead Acid To Lithium Battery Replacement for system review considerations, or explore RV Lithium Battery Solutions.
Configure a 100Ah Group 24 Battery for Your Brand
For RV manufacturers, battery distributors and private-label brands, start with the enclosure drawing, load profile and sales market. Then define the configuration and brand presentation.
Agree the following as one model-specific configuration:
- Custom product labels and branding
- Packaging and documentation
- Terminal configuration
- Battery housing requirements
- BMS parameter configuration
- Communication interface options
- Mechanical integration
- Prototype validation
- Manufacturing feasibility
Confirm the approved configuration and documentation scope before committing to samples or production. Explore RV Battery OEM & Private Label Solutions.
Before OEM release: approve the enclosure, packaging, terminals, mounting, continuous/peak current, BMS protection, charging compatibility and applicable compliance scope.
Request the Drawing and Charging Requirements
Ask for model-specific documents with their revision and approval status:
- Product datasheet
- Mechanical drawing
- BMS specification
- Charging requirements
- Communication interface documentation
- Applicable compliance documentation
Request Technical Specifications for the selected configuration before final system approval.
12V 100Ah Group 24 LiFePO4 Battery FAQ
What is the nominal energy of the T-RV100-G24?
12.8V × 100Ah = 1,280Wh / 1.28kWh nominal energy. Usable energy depends on operating limits and conditions.
What are the approved Group 24 battery dimensions?
The approved model dimensions are 260 × 168 × 210 mm (L × W × H). Verify terminal and mounting clearance for your installation.
Can this battery replace a Group 24 lead-acid RV battery?
Only after checking dimensions, terminals, charging settings, loads and protection. Group designation alone does not establish compatibility.
What is the P100 CORE BMS current rating?
Approved ratings are 100A continuous and 200A peak discharge. Check peak duration and operating conditions in the controlled datasheet.
Does this model include self-heating?
No. Self-heating is not included in CORE-STD-P100.
Can this battery support Bluetooth or CAN communication?
Confirm Bluetooth, CAN or RS485 for your selected configuration; they are not assumed standard in CORE.
Can these batteries be connected in series or parallel?
Use only series or parallel arrangements explicitly approved in the model and BMS documentation; do not assume 4S / 4P compatibility.
Does TUORDE support OEM and private-label customization?
Yes. Review housing, terminals, BMS options, branding, packaging and system integration as one configuration.
Discuss Your 100Ah Group 24 RV Battery Project
Send your tray dimensions, terminal requirements, DC/inverter loads, charging equipment and target quantity. TUORDE can review fit, configuration, OEM requirements and evaluation sample availability.
For configuration details, Request Technical Specifications.
Need a different enclosure or energy budget? Review the 12V 200Ah H8 Smart RV Battery as a separate 353 × 175 × 190 mm H8 platform, or browse AI Smart RV Batteries. These platforms require their own mechanical and electrical review; they are not interchangeable drop-in replacements.
