Seasonal temperature extremes
The operating requirements covered very cold winters and hot summer conditions.
ELECTRIC COMMERCIAL VEHICLES · T44
T44 is a traction-battery engineering project for a fully electric truck. The customer’s brief combined winter operation below −30°C, summer conditions above 40°C, demanding terrain and the need to manage maintenance and operating time.
540V · 80Ah · about 44kWh
Discuss Your Custom Battery Project
This case documents a custom traction-battery project. It illustrates an engineering approach to one application; it is not a drop-in replacement product or a specification for TUORDE’s 24V truck starting and parking batteries.
The operating requirements covered very cold winters and hot summer conditions.
Vehicle duty, terrain and available battery energy had to be considered together.

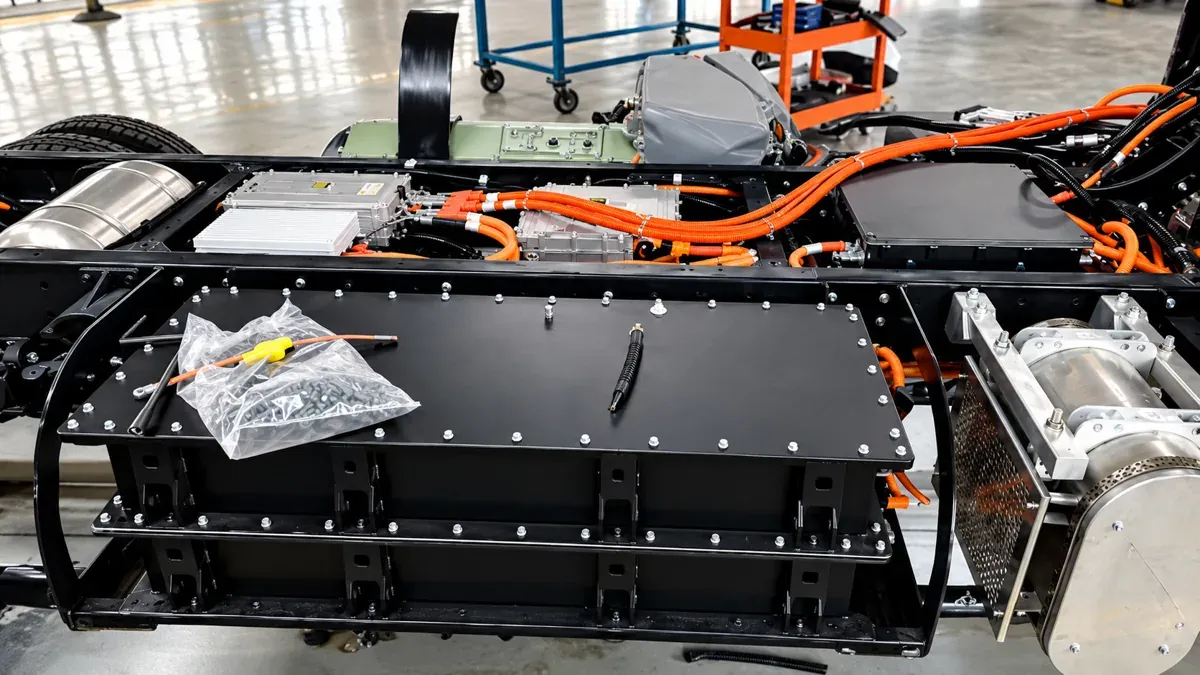

Structural integration, vibration and environmental exposure required a coordinated pack design.
The source describes fluid-based heating and cooling integrated into the battery system.
High-power architecture, energy management and cold-weather charging were included in the development scope. No charging-time guarantee is stated here.
The brief includes a structural pack, vibration damping and condition-based or predictive-maintenance functions in the BMS.
| Parameter | Source-reported project information |
|---|---|
| Application | Fully electric truck traction battery |
| Reported battery pack | 540V / 80Ah |
| Reported energy | Approximately 44kWh |
| Thermal approach | Active fluid-based heating and cooling |
| Mechanical approach | Structural battery pack and vibration damping |
| Environmental design | Enhanced sealing and corrosion protection |
The source reports 540V / 80Ah and approximately 44kWh. Their direct product is 43.2kWh; the reported energy is retained without replacing it with a calculated value. Confirm the nominal ratings and energy basis in the project datasheet.
The cited environmental conditions are project requirements, rather than a universal operating range for TUORDE products.
The source describes enhanced IP67 sealing and corrosion protection as integration priorities.
Pack drawings, charging limits and vehicle interfaces remain specific to the selected project configuration.
The source reports at least 3,000 cycles at 80% depth of discharge and vehicle operation of up to eight hours per charge. These are results reported in the T44 case brief; the brief does not provide the full duty cycle, temperature or acceptance-test conditions.
The case brief is TUORDE-supplied project documentation. Detailed test methods, acceptance records and applicable configuration drawings are available for discussion; no independent validation or universal performance guarantee is implied.
TECHNICAL RESOURCE
Review the project summary, engineering approach, and source-documented battery specifications in the PDF brief.
Download PDFDiscuss battery architecture, thermal design, structural integration, BMS interfaces and prototype verification for your application.
Share your application, voltage, capacity, operating environment, mechanical constraints and project stage with our engineering team.
Case reference: T44. Include this reference and your own operating requirements in the inquiry.
