TUORDE’s 24V-class 100Ah LiFePO4 battery combines a Group 31-format enclosure with Bluetooth 5.0 monitoring for RV house-power and mobile auxiliary systems. Review the battery-bay dimensions, charging equipment and electrical requirements for your installation or private-label program.
Group 31 FormatCheck tray and battery-box clearance
Bluetooth 5.0Monitoring through a compatible app
Plan Around Your Battery Bay
A single 25.6V, 100Ah pack provides 2.56kWh of nominal energy and a 100A BMS for a compatible house-power system. Its Group 31 format helps installers evaluate enclosure fit alongside the required capacity and monitoring configuration.
Space and Service Access
Check the full battery envelope, terminal clearance, cable bends and mounting restraints. Group 31 naming alone does not guarantee compatibility with an enclosed battery box.
Connected Battery Monitoring
Specify Bluetooth 5.0 monitoring as part of your battery program. Confirm the supplied app, supported readings and phone compatibility for the selected configuration.
Product Specifications
Parameter
Specification
Electrical & Monitoring
Chemistry
LiFePO4
Nominal voltage / capacity
25.6V / 100Ah
Nominal energy
2,560Wh (2.56kWh)
BMS rating
100A
Maximum continuous discharge
100A
Maximum continuous output
2,560W at nominal voltage
Time-limited discharge
500A for 1 second
Internal resistance
≤40mΩ
Connectivity
Bluetooth 5.0
Maximum expansion
4P2S: up to 4 parallel × 2 series
Cycle life
6,000 cycles at 100% DoD
Charging
Charge method
CC/CV
Charge voltage
28.8V ± 0.4V
Recommended charge current
20A
Maximum continuous charge current
100A
Temperature & Protection
Charging temperature
0°C to 50°C
Discharging temperature
−20°C to 60°C
Storage temperature
−10°C to 50°C
Low-temperature charge protection
Stops below 0°C; resumes at 5°C or above
Low-temperature discharge protection
Cuts off below −20°C
Self-heating
Not included
Mechanical
Enclosure format
Group 31 format
Dimensions, L × W × H
13.11 × 6.93 × 9.45 in Approximately 333 × 176 × 240 mm
Approximate weight
44.09 lb / 20kg
Terminals
M8 bolts
Housing
ABS
Protection class
IP65
Nominal energy is calculated from 25.6V × 100Ah; it is not measured usable energy. The 500A figure applies for 1 second and is not a CCA rating. Cycle-life evaluation requires the test temperature, charge/discharge rate and end-of-life criterion. IP65 does not permit submersion. Multi-battery systems require compatible batteries, wiring and protection.
5-Year Warranty
Request TUORDE’s written warranty terms for the supplied model, including coverage, exclusions and the claim process.
Three Checks Before Installation
Confirm physical fit. Compare the mechanical drawing with the tray, box, lid and terminal clearance. Include restraint points and access for inspection.
Match the electrical system. Check continuous loads, inverter surge, cables and external protection against the selected battery’s ratings. Provide a suitable conversion path for any 12V appliances.
Review every charging source. Identify the converter, shore charger, solar controller and alternator charging equipment. Compare their settings and cold-weather operation with the battery’s documented limits.

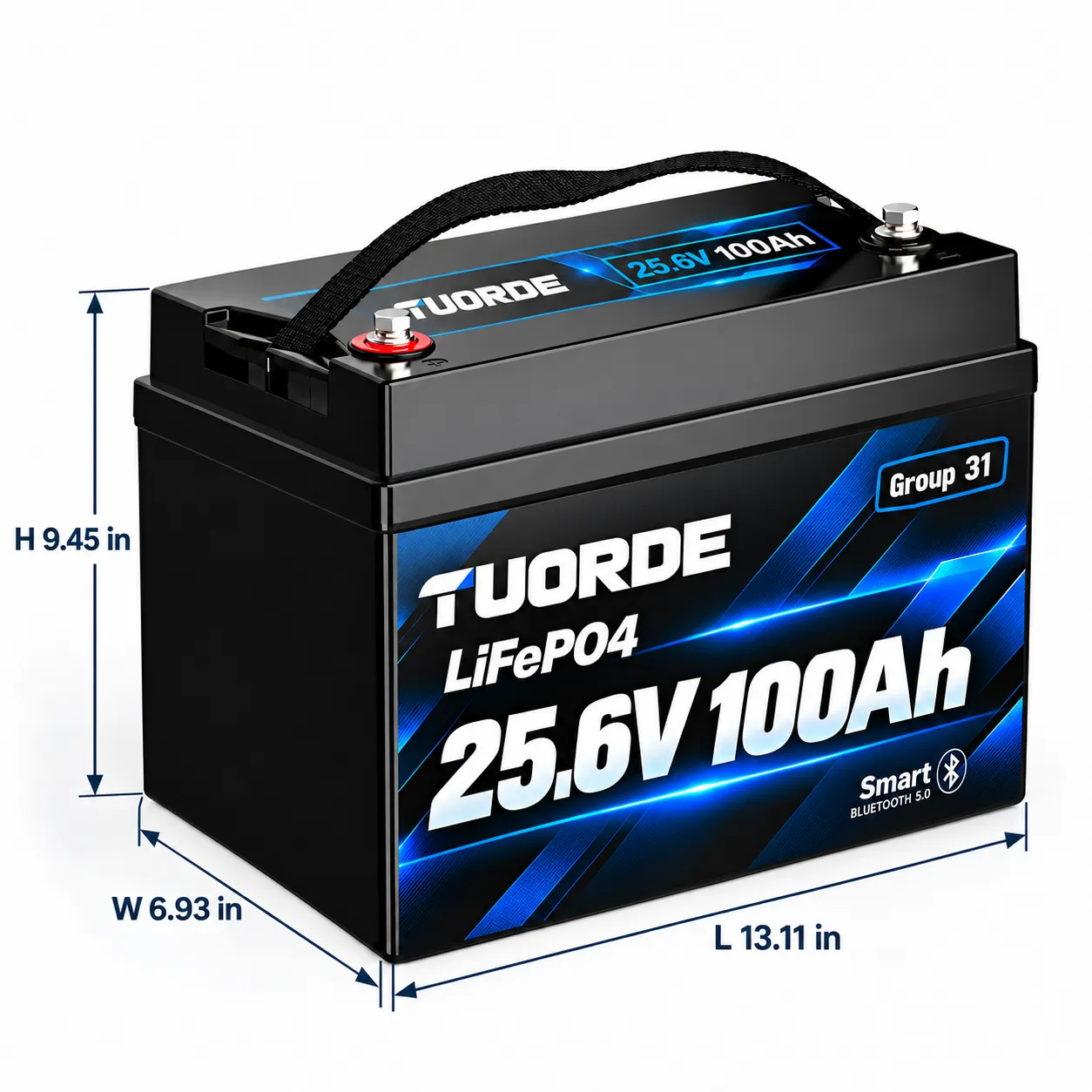

Verify the box’s internal dimensions against the battery’s 13.11 × 6.93 × 9.45 in envelope, then allow for terminals, cable routing and the lid. A matching group designation does not guarantee enclosed-box fit.

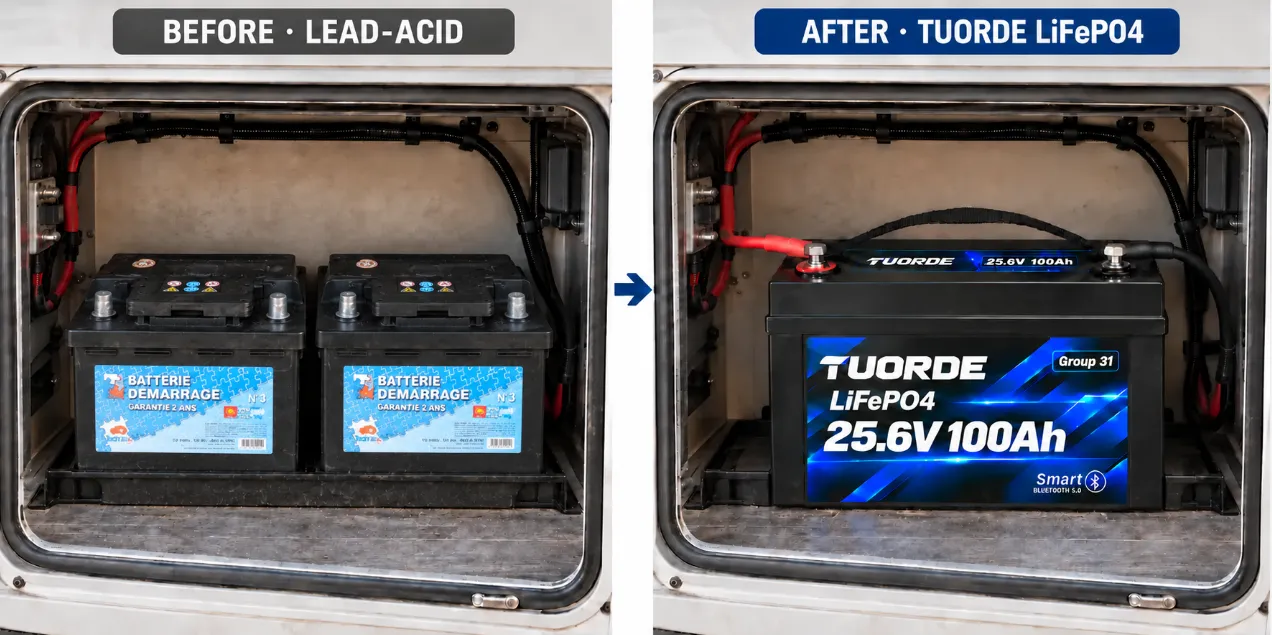

Can it directly replace a 12V RV battery?
No. This is a 24V-class battery for a compatible electrical architecture. Existing 12V appliances require a correctly specified DC–DC converter or separate supply, with charging and protection reviewed as a complete system.
Can I keep my existing charging equipment?
Check each charger’s lithium CC/CV profile against 28.8V ± 0.4V. The recommended current is 20A and maximum continuous charge current is 100A. Charging stops below 0°C and resumes at 5°C or above; this model has no self-heater. Send the equipment model numbers for review.

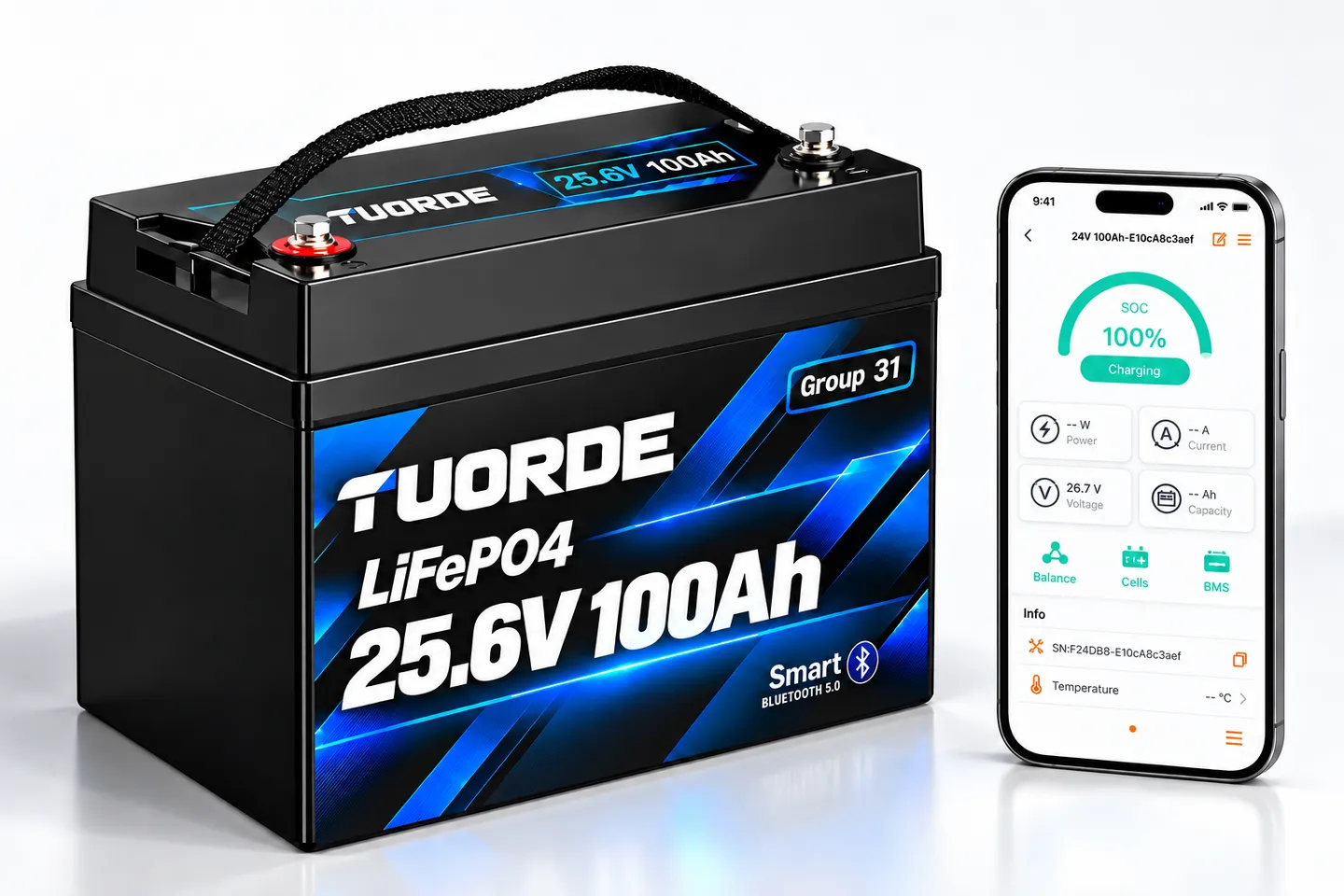

What does Bluetooth 5.0 monitoring include?
Use the compatible app to monitor state of charge, voltage, current and battery status. Confirm phone compatibility and the supplied app for your order. Bluetooth does not by itself establish CAN, RS485 or AI diagnostic support.
Is this an engine-starting battery?
This listing is for RV house power and auxiliary loads. No CCA or engine-starting rating is stated. Starting applications require a separately validated battery configuration.
FOR RV BRANDS · DISTRIBUTORS · SYSTEM INTEGRATORS
Specify Your Group 31 Battery Program
Mention the 24V 100Ah Group 31 Bluetooth battery and share your battery-bay dimensions, system voltage, loads and charging equipment. Include your target market, estimated quantity and branding or packaging requirements.
